PNL 36-01
Incoming / Outgoing Switchgear With Load Break Switch
Used for input to or output from system with opening or closing system under load.
Standard Equipment
- SF6 Isolated Load Break Switch
- Earthing Switch (Type 2)
- Capacitive Voltage Indicator
- Load Break Switch Mechanism
- Opening / Closing Coils
- Auxiliary Contacts
- Main Bus Bars
- Heater with Thermostatic Control
- Enclosure Earthing Bus Bars
- Cable Connection Setup
Optional Equipment
- Earth Fault & Short Circuit Indicator
- Remote Control
- Load Break Switch Spring Winding Motor

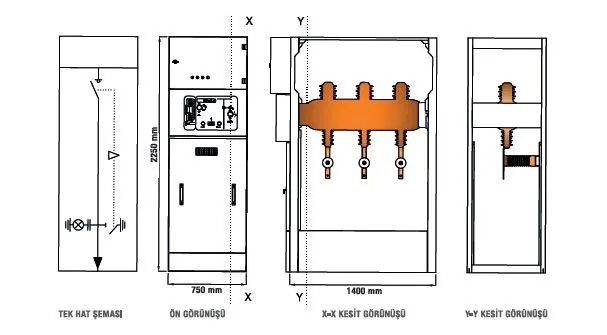

Technical Drawings
