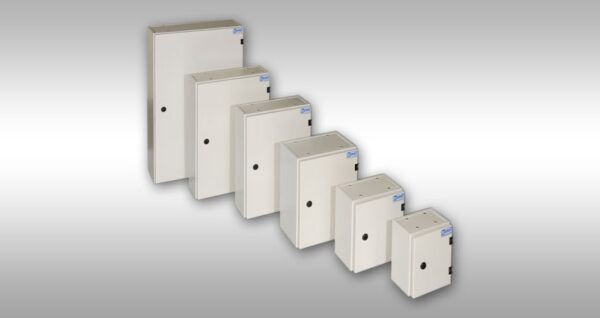

Wall Type Panels
Wall-mounted electrical panels with IP65 protection, available in indoor and outdoor types. Stainless steel option available.
Technical Specifications
- Protection Class
- IP65
- Sheet Thickness
- 1 / 1.2 / 1.5 mm CRS (other thicknesses on request)
- Coating
- Electrostatic powder coating, standard RAL 7035
- Body Options
- Painted sheet or stainless steel (chrome)
- Use
- Indoor / Outdoor (outdoor type with rain hood)
Standard Equipment
- Electrostatic powder coating (standard RAL 7035, other colours available)
- 1 / 1.2 / 1.5 mm CRS sheet body depending on dimensions
- Stainless steel (chrome) option
- Bottom plate or cover sheet + rail base options
- Wall mounting brackets included
- Cast polyurethane gasket on doors
Our wall type electrical panels are manufactured in two types, indoor and outdoor; outdoor panels are fitted with a rain hood.
With IP65 protection class, the panels are manufactured from 1 mm, 1.2 mm or 1.5 mm CRS sheet depending on their dimensions. Different sheet thicknesses and stainless steel bodies are available on request.
