PNL 36-14
Incoming / Outgoing Switchgear With Circuit Breaker And Voltage Transformer – Auto Producer Switchgear
Used to connect self produced electricity to main network.
Standard Equipment
- SF6 Isolated Switch
- SF6 Isolated Circuit Breaker
- MV Current Transformer
- MV Voltage Transformer
- MV Fuses
- Earthing Switch (Type 1)
- Overcurrent Relay
- Magnetic Field Organizer
- Capacitive Voltage Indicator
- Switch Mechanism
- Circuit Breaker Mechanism
- Opening / Closing Coils
- Auxiliary Contacts
- Main Bus Bars
- Heater with Thermostatic Control
- Enclosure Earthing Bus Bars
- Cable Connection Setup
Optional Equipment
- Protection Relay
- Digital Programmable Relay
- Battery Charger + Maintenance Free Battery Groups
- Remote Control
- Active – Reactive Electricity Meter
- Ammeter
- Alarm Relay Combination (Transformer Protection)
- Other Metering Hardware

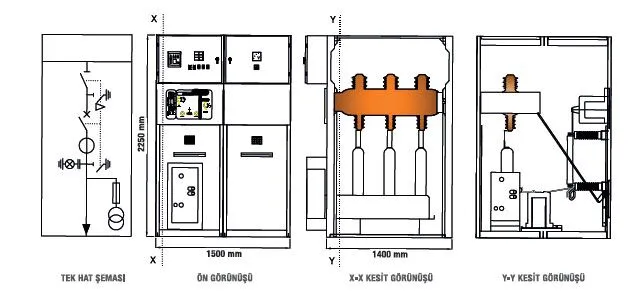

Technical Drawings
