PNL 36-21
Coupling Switchgear With Load Break Switch (Incoming From Right)
Used to safely connect to or disconnect from main network.
Standard Equipment
- SF6 Isolated Load Break Switch
- Load Break Switch Mechanism
- Main Bus Bars
- Heater with Thermostatic Control

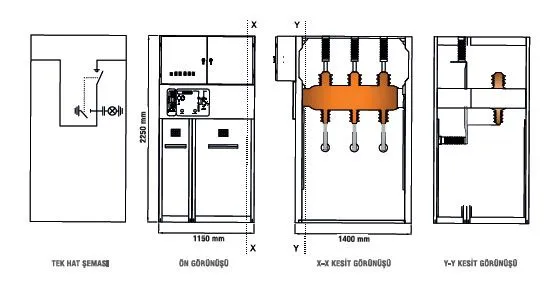

Technical Drawings
